High Quality Mini Portable
SpO2 Fingertip Pulse Oximeter
AE-02
INTRODUCTION
With the growing number of COPD and other lung disease nowadays. Keep monitoring oxygen saturation level becomes more important than ever before. Being an active patient with COPD, pulse oximetry caters you a way to monitor your pulse rate wherever you are. Simply put your fingertip attached with our AE-02 Pulse Oximeter, then the amount of oxygen carried in your body will be shown as well as pulse rate on the screen. A normal SpO2 (oxygen saturation) level should value between 95% and 100%. In the opposition, which less than 90% are considered as a sign of Hypoxemia (low blood Oxygen). The Hypoxemia can lead to a result of other respiratory, heart and brain diseases. Now, you can easily measure your SpO2 level with our contemporary product AE02 SpO2 Pulse Oximetry at home without driving to the clinic form miles away.
FINGERTIP PULSE OXIMETER (Oximeter of Pulse, Oximeters Pulse) model AE-02 is a unique designed Finger Type Pulse Oximeter which can check patient’s heart rate and blood –oxygen saturation levels simply and quickly. SpO2 and pulse rate measurement and can be be worn around the neck. It’s convenient for spot check readings. The Large OLED display allows for use in a wide range of light and dark environments. The portable device enhance the safety of mountain climbing and other activities in high altitude area with thin air. The value of SpO2 and PR can be clearly read in the different angle of OLED displays. It’s great SpO2 diagnostic tool for physician or nurse to go on inspection around sickrooms of Hospital.

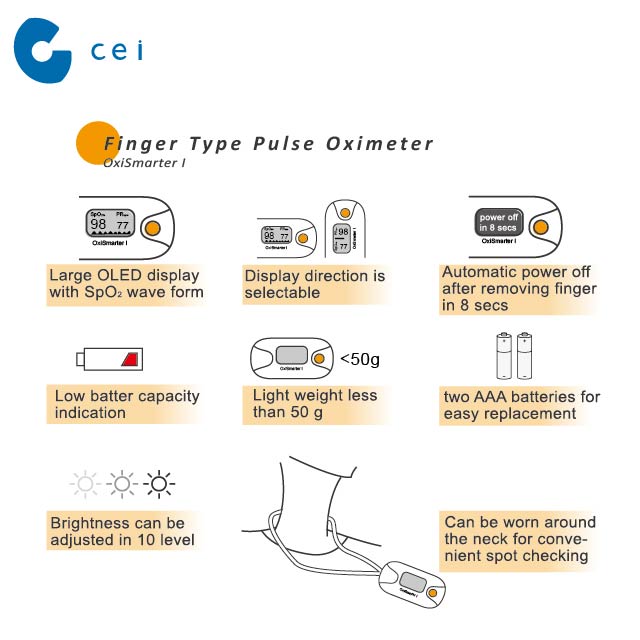

FEATURES
| SPECIFICATION | |
| Patient Range | Adult, Pediatric |
| SpO2 Display Rang | 0% ~ 99% |
| SpO2 Range | 70% ~ 99% |
| SpO2 Resolution | ± 1% |
| SpO2 Accuracy | 70% ~ 99%: ± 3%, 0% ~ 69%: No definition |
| SpO2 Method | Dual wavelength LED |
| Pulse Rate (PR) Display Range | 0 ~ 254 bpm |
| Pulse Rate (PR) Range | 30 ~ 235 bpm |
| Pulse Rate (PR) Resolution | ± 1 bpm |
| Pulse Rate (PR) Accuracy | ± 3%, 0% ~ 69%: No definition |

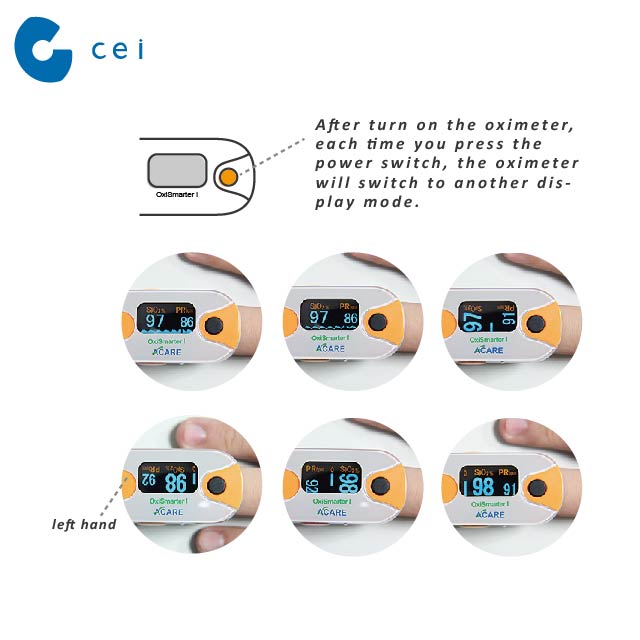

| Display Type | LED Display 6 display modes |
| Display Parameters | SpO2, PR, Pleth bar, Pleth waveform |
| Display Information | Low Battery |

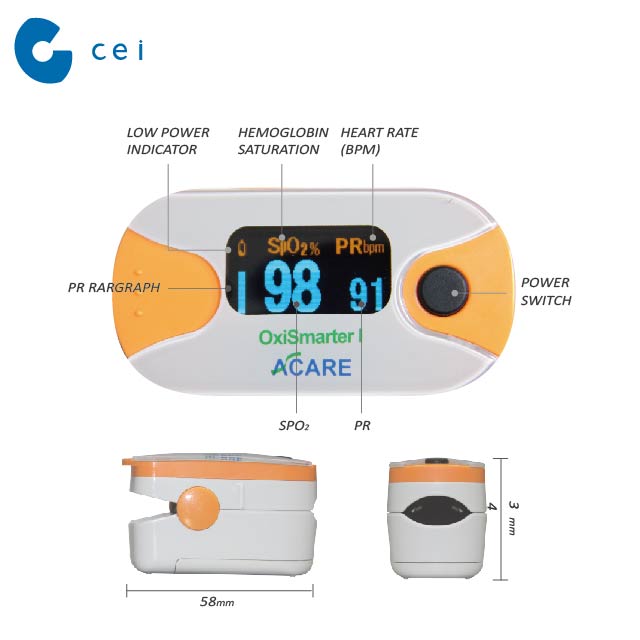

| Mechanical Size | 58 x 32 x 34 mm |
| Mechanical Weight | 50g (including 2 batteries) |
| Battery Type | 2 AAA size (1.5Vdc) Alkaline Batteries or 2 AAA (1.5Vdc) rechargeable batteries |
| Operation time | minimum 30 hours for normal operation |
| Operating Temperature | 5°C ~ 40°C |
| Storage Temperature | -20°C ~ 55°C |
| Operating Humidity | ≤ 80%RH, non-condensing |
| Storage Humidity | ≤ 93%RH, non-condensing |
| Classification Type of protection | internally powered equipment |
| Certificate | FDA, CE, ISO 13485, IEC 60601-1-2 |
Oxygen Saturation Level | |
| 100%-95% | An SpO2 of greater than 95% is generally considered to be normal and healthy. |
| 94%-90% | SpO2 values between 90% and 100% suggests slightly inadequate oxygen carrying in arterial blood. |
| Less than 90% | An SpO2 of less than 90% could be a sign of poor oxygenation, known as hypoxia or hypoxemia. |
BEST SERVICE | BEST QUALITY | BEST TECHNOLOGY
CEI Technology Inc. was established in February 2006 and is a leading company in healthcare, beauty, and medical; and that with our unique business model that combines marketing and R&D together, which can promise to provide newest and best technology product for you, also to ensure you and our success will continue; we will focus on developing what customers really need and want.
